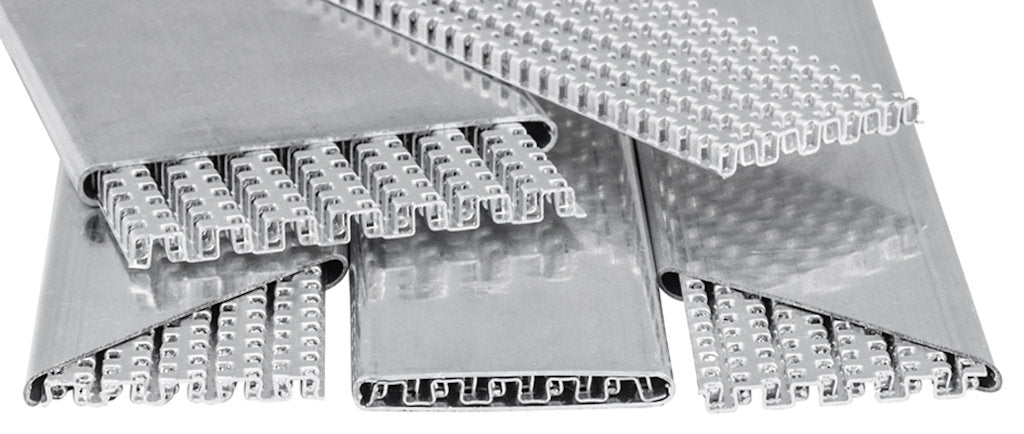

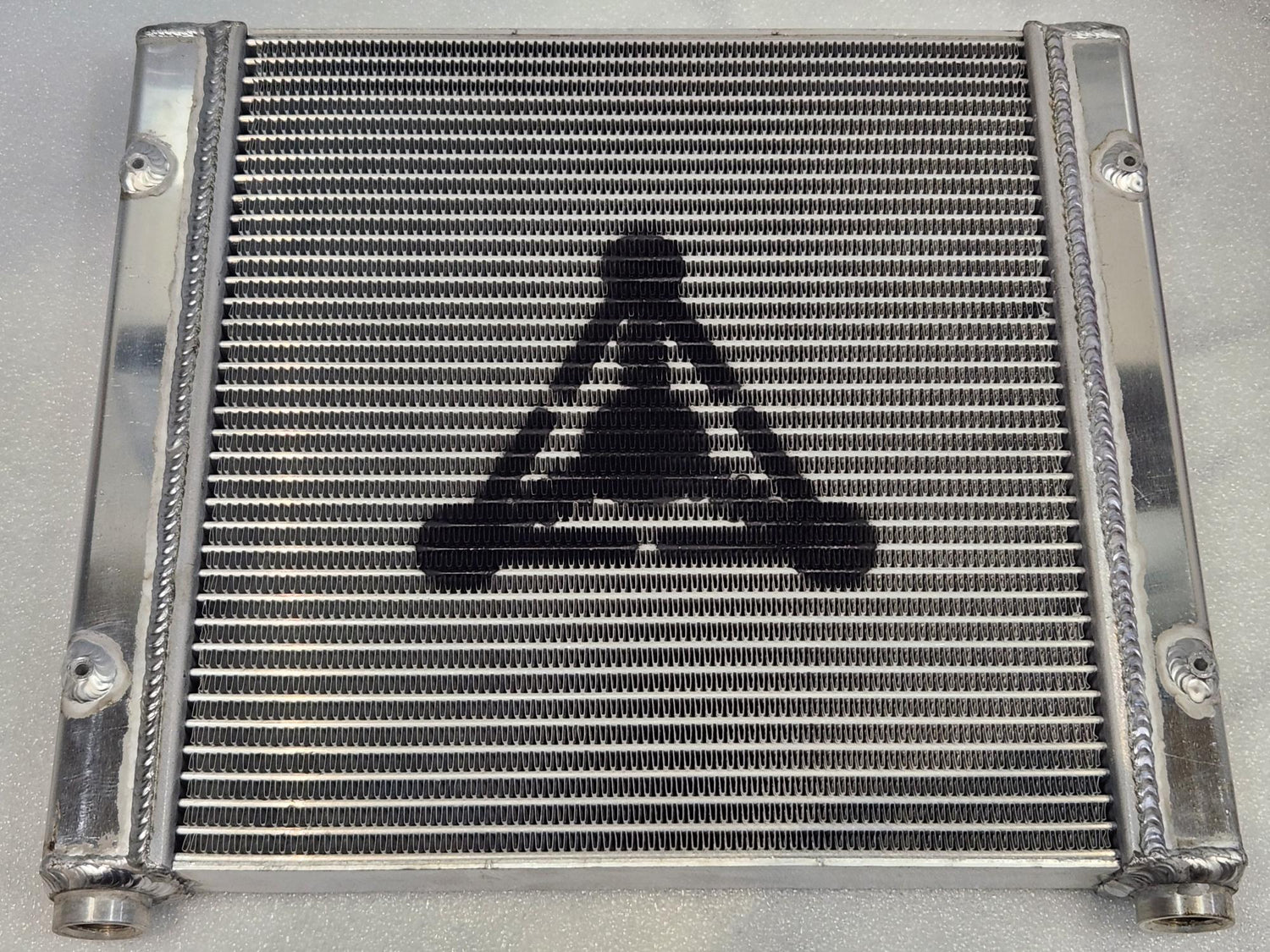

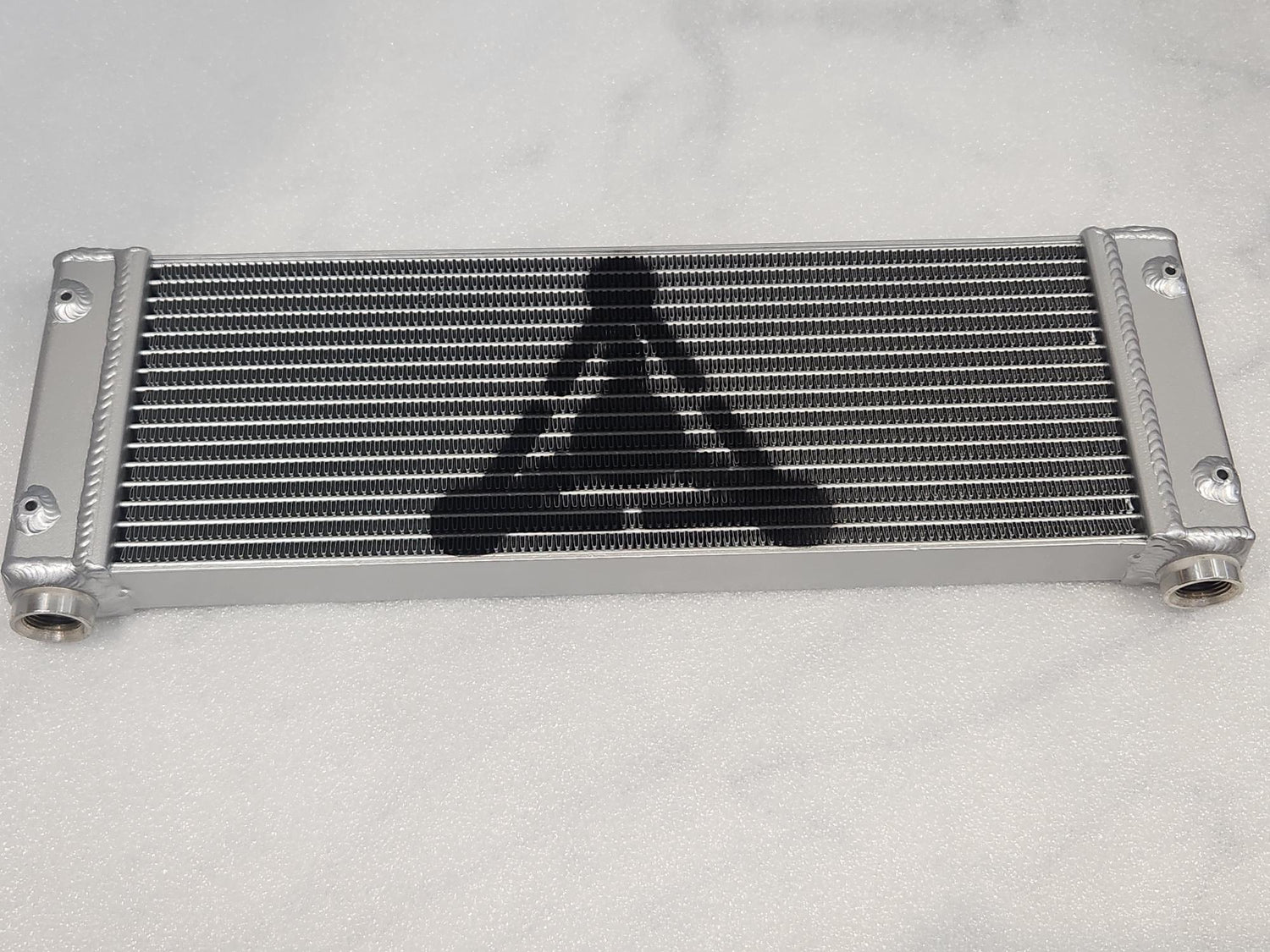

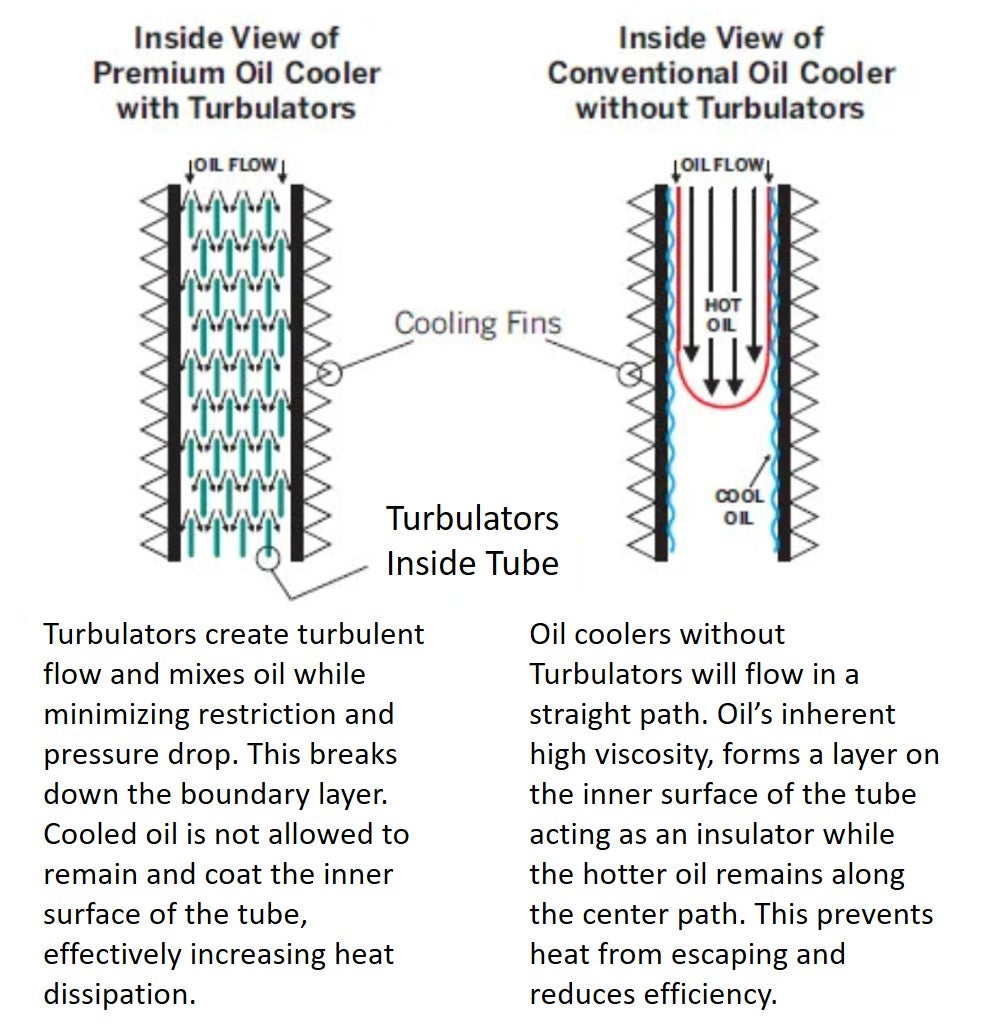

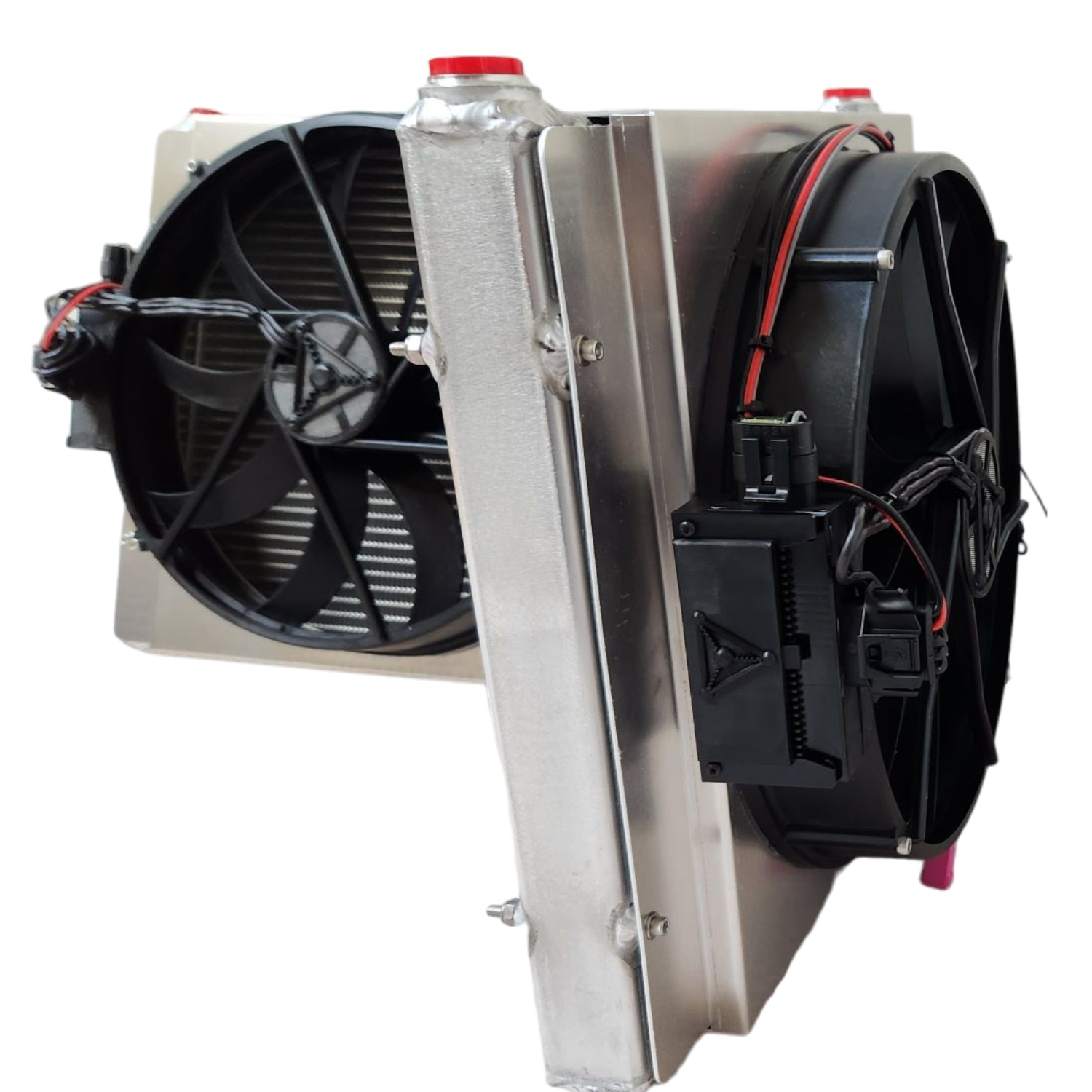

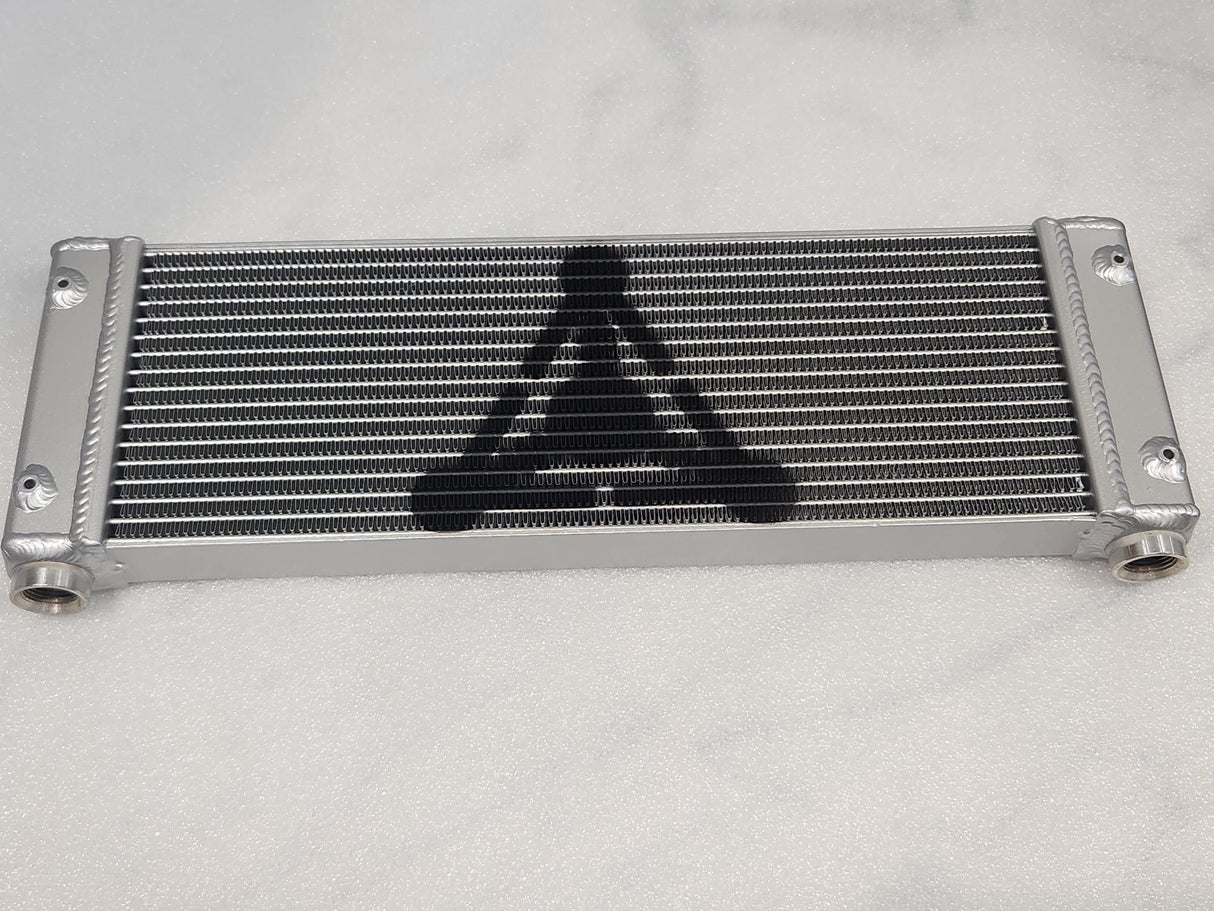

Oil Cooler $289.00 19" x 6" (165k BTU/h) - $289.00 15" x 13" (240k BTU/h) - $325.00 15" x 13" w/ 12" Brushless Fan & Shroud - $690.00 Quantity Please Choose Sensor Type. Cladded Aluminum Alloy Flat Tube w/Turbulators Core/Tube type has the Highest heat dissipation rate on the market, Not extruded tube High flow rate with lowest pressure drop, supports high viscosity oils 28 GPM Flow Rate for the small one 45 GPM for the large one Up To 250 PSI -10AN ORB Inlet/Outlet Two 1/8 NPT bungs for sensors or ail bleeding 4x through tank mounting holes for a sleek hidden/floating look (8-32 screws provided) Two different sizes to choose from; 165,000BTU/h or 240,000 BTU/h Add our 12" brushless fan and shroud for the larger remote mount cooler Huge cooling capability!
